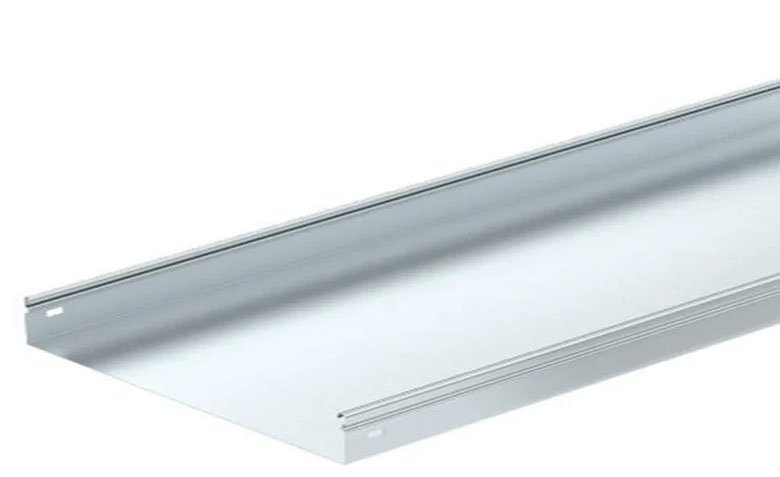

OBO Bettermann Unperforated Cable Tray
OBO Bettermann Unperforated Cable Tray
🌍 Product Description
OBO offers cable support systems made by professionals for professionals:The technical properties are guaranteed by IEC 61537. It describes all the relevant parameters – from the area of application, through test conditions, up to corrosion resistance and temperature classification. As a competent manufacturer of cable support systems, OBO subjects itself to these requirements on a daily basis.
⚡ Features
- Solid bottom design for maximum cable protection
- High mechanical strength and load capacity
- Corrosion-resistant galvanized coating
- Waterproof and dustproof construction
- Available in multiple widths and heights
- Complies with IEC and DIN standards
📦 Technical Data
| Attribute | Details |
|---|---|
| Tray Type | GKS |
| Cable Tray Coating | Galvanized Coating |
| Brand | OBO Bettermann |
| Available Plate Thickness | 0.6 mm, 0.7 mm, 1 mm, 1.2 mm |
| Weight | 227.340 kg/100 pcs |
| Available Material | Strip galvanised, Hot dip galvanised |
| Width | 100 mm, 150 mm, 200 mm, 300 mm, 400 mm, 500 mm |
| Available Side Height | 60 mm, 100 mm |
| Packaging Size | 3 m/pcs |
| Available Accessories | Barrier strip, Straight connector, Angle connector, Stop end, Adjustable connector, Lid |
| Material | Steel |
✅ Benefits
- Ensures complete cable protection from dust and debris
- Strong and durable for heavy-duty applications
- Ideal for sensitive environments like hospitals and data centers
- Flexible installation with multiple sizes
- Long service life with anti-corrosion protection
