OBO Bettermann Cable And Pipe Spacer Clip

OBO Bettermann Star Quick Clip


OBO Bettermann Star Quick Clip

🌍 Product Description

Can be arranged next to each other to size SQ-28. Break load: with bolt DIN 96; diameter 4.5 mm, minimum break load at 20°. Star Quick clip Type SQ. A comprehensive programme of quality clips ideal for the use in outside areas such as parking garages, under bridges and on the exterior of steel structures. Climate conditions have no chance: the starQuick clips are made from UV weather-resistant polyamide. The starQuick clips are available in 13 different sizes with a clamping range of 10–65 mm, allowing a problem-free installation on different pipe systems. star Quick is suitable for plastic and metal pipes, as well as electrical and sanitary installations. The clips can be installed on the wall and ceiling. Mounting is amazingly fast and uncomplicated, without the use of tools.

⚡ Features

  • Star-shaped design for multiple cable/pipe fixing
  • High-speed installation with snap-in system
  • Halogen-free and flame-resistant
  • UV-resistant and weatherproof
  • Available in multiple sizes (M16–M63)
  • Stackable and interconnectable for flexible arrangements
  • Complies with IEC and DIN standards

📦 Technical Data

Attribute Details
Packaging SizePlastic
ColorLight Grey
BrandOBO Bettermann
Usage/ApplicationStar Quick is suitable for plastic and metal pipes, as well as electrical and sanitary installations
Available Clamping Range9.5-12, 11.5-15, 14-16.5, 16-20, 19.5-23.5, 24-28, 27.5-32, 31.2-35.8, 35-40.1, 39.3-44.5, 44-50 mm

🔧 Mounting of Multiple Pipes

  • By arranging the single clips
  • By using the double bracket, allowing a firm hold and spacing under heavy loads
  • A rail system allows for open spacing and numbering of the clips
  • Star Quick is reliable and can support heavy loads
  • A patented safety system guarantees that the pipes stay securely in place
  • The pipe is secure in the all-around closed clip

✅ Benefits

  • Allows multiple conduits to be fixed in one clip
  • Ensures neat and organized cable management
  • Durable and long service life
  • Quick installation saves time and labor
  • Flexible use across industrial, commercial, and residential installations

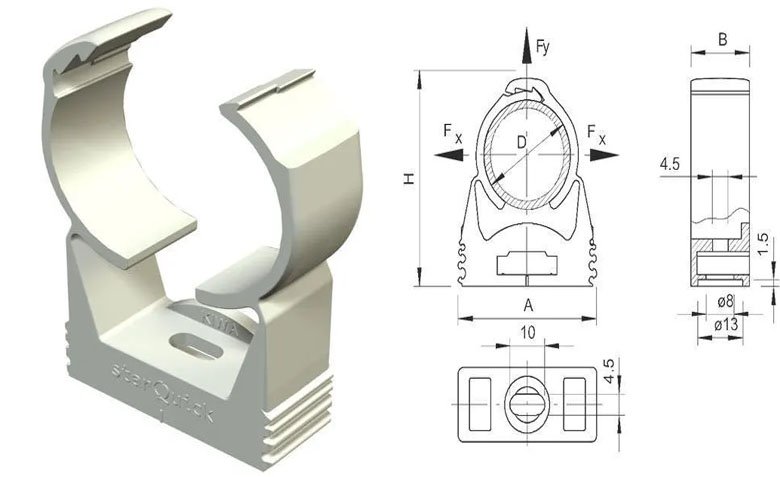

📐 Dimension Data

Type Size Dimension A (mm) Dimension B (mm) Dimension H (mm) Breaking Load (kN)
SQ-10 LGR - 29 17 31.6 0.5
